SAFE. TOUGH. RELIABLE.

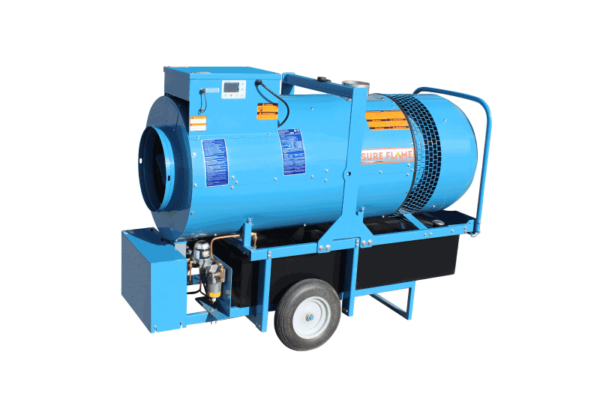

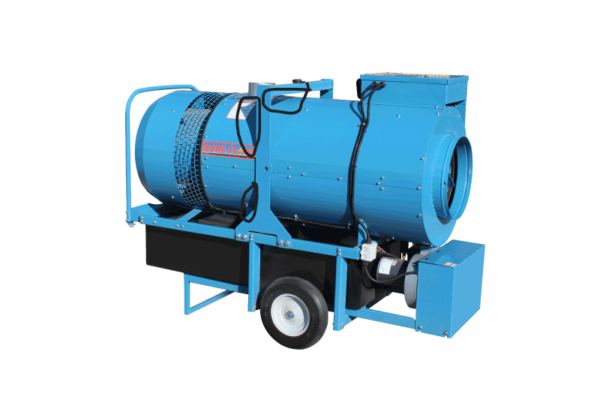

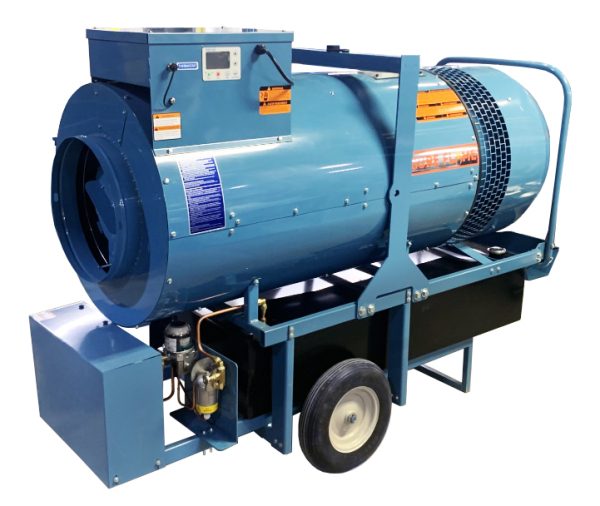

ID4
400,000 BTU
5,000 CFM
5,000 CFM
FEATURES:
- 5-Year Pro-Rated Combustion Chamber Warranty
- 3 Heat Modes Controlled by the LED Control Panel
- Ductable for 100’ for both 16” or 2 x 12”
- Fantastic Heat Rise and a Great Discharge Temperature
- Low Amperage Draw for Construction Sites
- Narrow Design – Fits Through Doorways
- Standard Tigerloop Fuel De-Aerator
- Easy-to-use Diagnostics Panel that Records the Errors, Speeds up Troubleshooting, and Decreases Downtime – No Reader Needed
- Easy to Move on the Site with Lifting Lug and Fork Lift Pockets

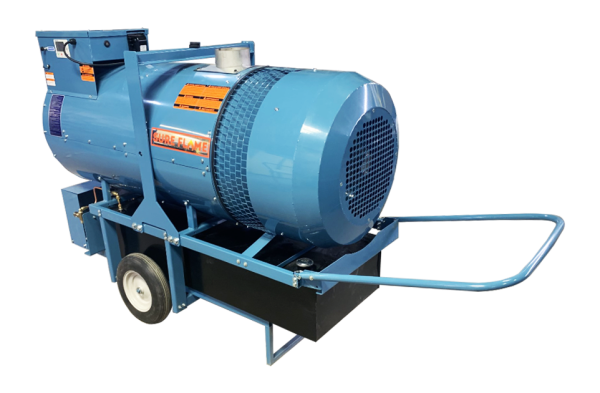

- Ergonomic Fold-Away Handle with Foam-Filled Wheels and Good Balance for One Person Handling
- Large Metal Fuel Tank for Years of Life
Description
| Heat Input | 400,000 BTU/Hr |
| Heat Efficiency | 82% |
| Heat Rise | 80 to 120C |
| Fan Rating | 5000 CFM (*Actual CFM output will vary depending on operating conditions) |
| Heated Air Flow (CFM) | 2400 CFM |
| Max Static Pressure | 2.7 |
| Max Duct Length | 100 Ft |

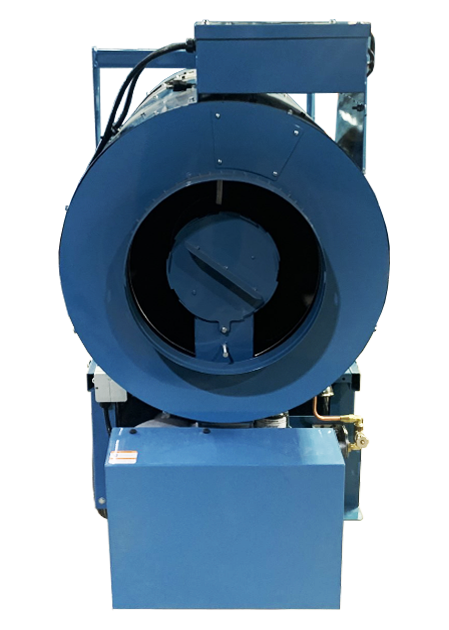

| Outlet Diameter | 1×16, 2 x 12 (inches) |
| Voltage | 1HP / 120V, 1Ph |
| Dimensions (LxWxH) | 77 x 30 x 58 (inches) |
| Max Amp Load | 12 |
| Inlet Diameter | 16″ |
| Flue Diameter | 6″ |
| Weight | 630 lbs |
| Gas Connection | 1″ NPT |
| Gas Supply | 1/2 PSI |
| Approx. Fuel Consumption | 10.9L/Hr or 2.87 US g/Hr |
